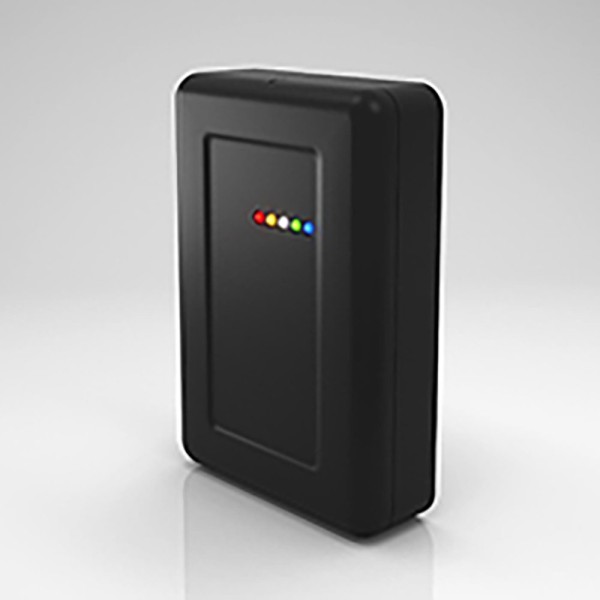

Magnetic AutoControl Radar Sensor for Barrier Openers - RADS01

Specifications:

• Housing: Polycarbonate with Die-Cast Aluminum
• Dimensions: (W x H x D) 2.5" x 3.7" x 0.85"
• Connection: 8-pin cable, 0.25 mm², 6.2 ft long
• Protection Rating: IP65
• Supply Voltage: 9 - 30 V DC
• Mounting: 4 x M5 fastening screws
• Mounting Height: 12" - 35" ; EN 12453 (level D): max. 27.5"
• Power Consumption: Max. 1.8 W
• Operating Temperature: -22° F to 131° F
• Frequency Range: 60 - 64 GHz
• Technology: Millimeter-Wave Radar, FMCW
• Signal Outputs: 3 Semiconductor Relays (Galvanically Isolated, Common COM)
• Switching Voltage: Max. 30 V AC/DC
• Switching Current: Max. 100 mA
• Status Indicators: 5 LEDs (Yellow / Red / Yellow / Blue / Green)
• Communication Interface: Bluetooth BLE 5.0
• Detection Range: Max. 26 x 26 ft - Max 19.65 ft at EN 12453 level D
• Response Time: 200 ms
