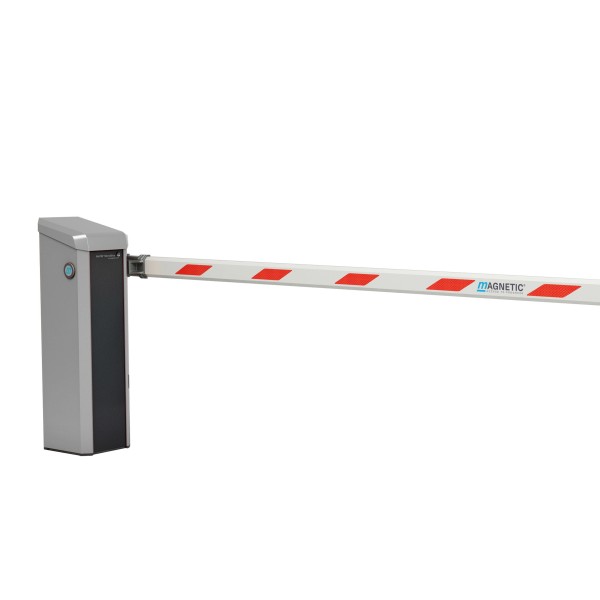

Magnetic Access Pro-H Spare Gate Opener With MicroDrive - 20ft Long Max (Light Grey) Opener Only - Pro-H-RC00020
Details
Magnetic Access Pro-H Spare Gate Opener With MicroDrive - 20ft Long Max (Light Grey) Opener Only - Pro-H-RC00020
Our spare Access Pro-H gate operator is specifically designed for applications that require a boom skirt. Boom skirts help prevent pedestrian intrusion by giving your boom extra barrier bars. Designed and manufactured by Magnetic AutoControl, the leading name in the barrier industry.
All Access Pro-H gate openers contain the MGC PRO control unit that is EN 13849 compliant and is easy to configure with an LCD screen. Worried about heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit.
Please Note: This unit is compatible with MicroBooms up to 20 ft long. Boom and boom skirt sold separately. Operators using a boom skirt must use a pendulum support or support post.
Includes:
- MGC Pro Controller
- Integrated Dual Channel Loop Detector
- Light Grey Powder-Coated Aluminum Housing
Features:
- 4.0 Second Open and Close Speeds
- Maximum Boom Length: 20 ft
- Built for boom skirts
- Selectable opening and closing times
- Maximum power consumption of 25W
- 10 Million opening and closing cycles
- 2 Year Warranty
| SKU | ACCESS PRO-H-RC00020 |
|---|---|
| Manufacturer | Magnetic Automation Corp. |
| Model | Access Pro-H |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Color | Light Grey |
| Speed | 4.0 seconds |
| Max Boom Length | 20' |
