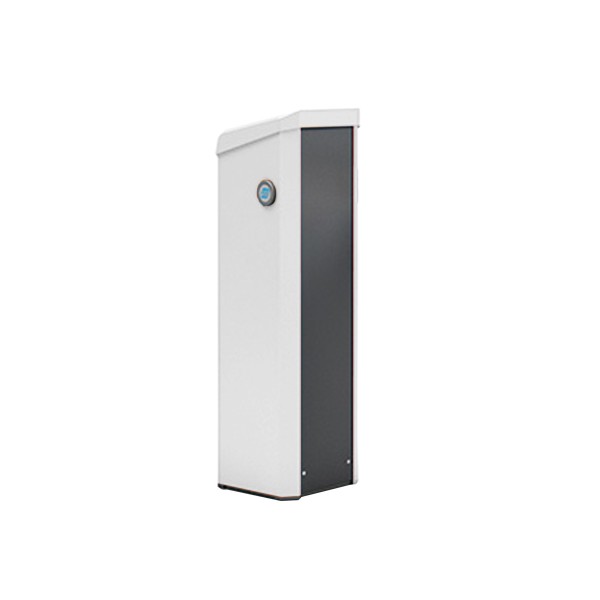

Magnetic Microdrive Toll Pro w/ MGC Pro Controller - Right Hand - No Boom Or Flange Included (White) - TOLL-RC00042
Details
Magnetic Microdrive Toll Pro w/ MGC Pro Controller - Right Hand - No Boom Or Flange Included (White) - TOLL-RC00042
The Microdrive Toll Pro is engineered for seamless toll collection at bridges, tunnels, and roads, prioritizing rapid and efficient processing. It features the MHTM drive unit, recognized for its energy efficiency, low operating costs, and extended service life. The design incorporates user-friendly accessibility for quick setup and maintenance, and it operates with a 100% duty cycle for continuous use. This model is configured with the MGC.Pro controller, providing advanced programmability and compatibility with a range of optional safety and control modules.
Features
- Opening and closing time of 0.9 seconds.
- Designed for up to 10 million opening and closing cycles.
- Equipped with the MGC.Pro controller featuring 2 detector channels and adjustable inputs/outputs.
- Compact housing dimensions of 315 x 360 x 1115 mm.
- Standard white color for versatile installations.
- Rated for IP54 enclosure for protection against environmental factors.
Specifications
- Lane width: Maximum 3.0 meters.
- Power consumption: Maximum 95 W.
- Voltage: 100–240 V AC, 50–60 Hz.
- Temperature range: -30 to +55 Degrees Celsius.
- Weight: Approximately 42 kg.
- Enclosure: IP54 rated.
- Control system: MGC.Pro with advanced customization options.
- Barrier options: Compatible with round, octagonal, and soft boom designs (not included).
| SKU | TOLL-RC00042 |
|---|---|
| Manufacturer | Magnetic Automation Corp. |
| Model | Toll Pro |
| Speed | 0.9 seconds |
| Color | White |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase) |
| Frequency | 50 / 60 Hz |
| Temperature Range | -22°F to +131°F |
| Weight (without boom) | 92.6 lbs |
