MAGNETIC-TOLL Designed for speed and reliability
MAGNETIC-TOLL Modern toll stations are complex systems which have a crucial demand for speed and reliability. MAGNETIC-TOLL barriers were especially designed for this application and offer maximum reliability at fast speeds, high quality and maximum ease of use. The integration of different payment methods (electronically, manually, etc.) may be easily accomplished due to a large number of inputs and outputs.
Configuring the barrier is easily accomplished via the LCD’s intuitive user interface that can be navigated with just 4 push-buttons.
The innovative MHTM™ MicroDrive provides high torque with minimal power consumption.
Swing-Away Flange (RCS)
The Swing-Away Flange prevents damages to the barrier / vehicle in case of an unpermitted or forced drive-through. Standard in RCS models

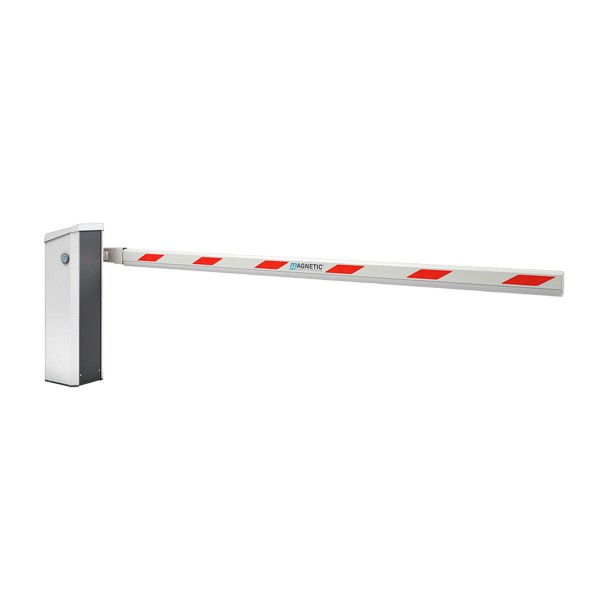

Model: RCS1042 toll-RCS1042
10FT Octagonal Boom
|Control Unit||Integrated 2-channel loop detector|
|Manufacturer||Magnetic Automation Corp.|
|Boom Length||10 ft|
|Dimensions (W x D x H)||12" x 14" x 44"|
|Max Power Consumption||55 W|
|Wide Voltage Range||85 V - 264 V|
|Protection Class||IP 54|
|Frequency||50 / 60 Hz|
|Temperature Range||-22°F to +122°F|
|Weight (without boom)||92.6 lbs|
