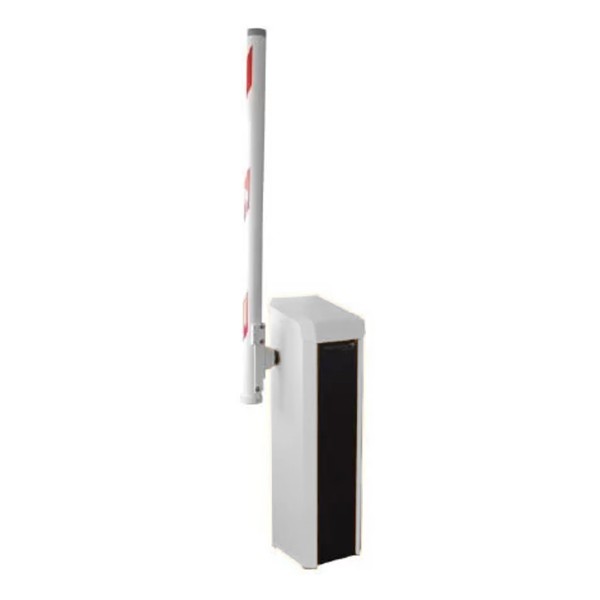

Magnetic Toll-RCS1241 Barrier Opener w/ 12ft Octagonal Boom (White)

This white magnetic toll barrier features a white cabinet, includes a 12 ft octagonal boom, and will operate flawlessly in heavy wind or snow. From Magnetic AutoControl, the most trusted name in the toll barrier business.
Part Number: Toll-RCS1241

$3,857.00 each


Magnetic Toll-RCS1241 Barrier Opener w/ 12ft Octagonal Boom (White)

Do you need a reliable toll barrier gate? Choose one from Magnetic AutoControl, the most trusted name in toll barriers. Our Magnetic Toll barriers open in just 1.3 seconds, allowing for a high throughput of vehicles. These durable barriers features the MGC controller that is EN 13849 compliant and is easy to configure with an LCD screen.

Worried about your barrier running in heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit.

The included 12 ft octagonal boom allows you to set up and use your barrier right away. The equipped swing-away flange prevents damage to the barrier and vehicle in the event of unpermitted or forced drive-through.


  • MGC Controller
  • 12' Octagonal Boom
  • Integrated Dual Channel Loop Detector
  • Swing Away Flange
  • White Powder-Coated Aluminum Housing


  • 1.3 Second Open and Close Speeds
  • 10 Million Opening and Closing Cycles
  • Maximum Power Consumption of 55W
  • 2 Year Warranty

Available Options for Replacement Arms:

MHTM Manual

Magnetic Toll Brochure

Wiring Diagram

Control Unit Integrated 2-channel loop detector
SKU Toll-RCS1241
Manufacturer Magnetic Automation Corp.
Model Toll
Boom Length 12 ft
Boom Shape Octagonal
Speed 1.3 seconds
Color White
Dimensions (W x D x H) 12" x 14" x 44"
Max Power Consumption 55 W
Wide Voltage Range 85 V - 264 V
Protection Class IP 54
Frequency 50 / 60 Hz
Temperature Range -22°F to +122°F
Weight (without boom) 92.6 lbs
