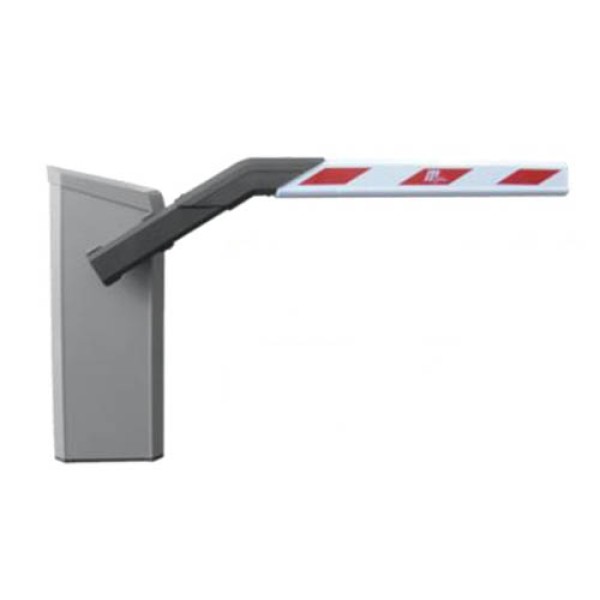

Magnetic Parking Barrier Gate Opener With MicroDrive - 8ft Boom With Breakaway Flange (Light Grey) - Pro-RCB0820

Rest assured that your parking lot will run efficiently with a Magnetic AutoControl barrier. This Parking Pro barrier features a light grey housing, opens in 1.3 seconds, and includes a 8 ft boom.
Part Number: PARKING-PRO-RCB0820
$4,035.07 each
$4,035.07 each
OR

Details

Magnetic Parking Barrier Gate Opener With MicroDrive - 8ft Boom With Breakaway Flange (Light Grey) - Pro-RCB0820

Get the efficient parking barrier you need with Magnetic AutoControl. Our Magnetic Parking Pro barrier has a fast opening time of 1.3 seconds and is perfect for use in a variety of parking systems.

All Parking Pro gates contain the MGC PRO control unit with programmable I/O, selectable auto-open on power failure feature, and multiple open/close speeds. This control unit is EN 13849 compliant and is easy to configure with an LCD screen. The included 8ft VarioBoom improves barrier visibility and features a foam edge that protects people from harm.

Worried about heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit.

Includes Breakaway Flange in place of the standard flange.

Includes:

  • MGC Pro Controller
  • 8' VarioBoom Barrier Boom
  • Integrated Dual Channel Loop Detector
  • Light Grey Powder-Coated Aluminum Housing
  • Breakaway flange

Features:

  • 1.3 Second Open and Close Speeds
  • Adjustable opening and closing times
  • Maximum power consumption of 95W
  • 10 Million opening and closing cycles
  • 2 Year Warranty
MHTM Manual

Magnetic Parking Brochure

Prefer to Call? (888) 378-1059

Questions about part number PARKING-PRO-RCB0820?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU PARKING-PRO-RCB0820
Alternate Part Number Parking Pro-RCB0820
Manufacturer Magnetic Automation Corp.
Boom Length 8 ft
Speed 1.3 seconds
Color Light Grey
Dimensions (W x D x H) 12" x 14" x 36"
Max Power Consumption 95 W
Input Voltage 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Protection Class IP 54
Frequency 50 / 60 Hz
Temperature Range -22°F to +122°F
Weight (without boom) 88 lbs
