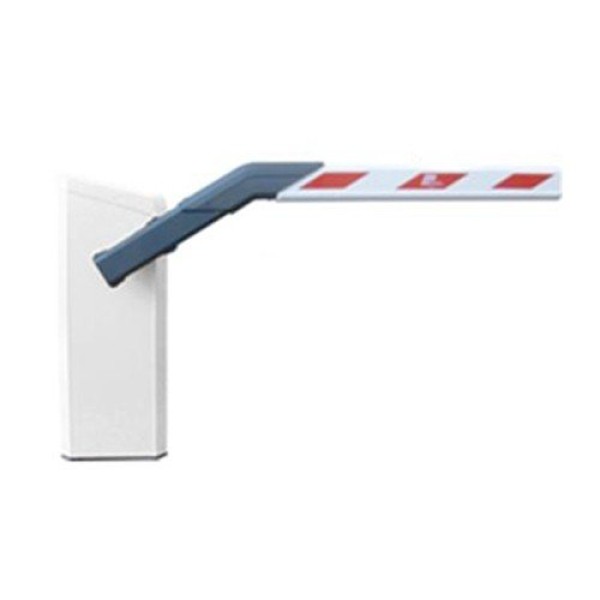

Magnetic Access Pro-L Left-Handed Barrier Gate Opener With MicroDrive - 12ft Boom (White)
Details
Magnetic Access Pro-L Left-Handed Barrier Gate Opener With MicroDrive - 12ft Boom (White)
Control wide-lane access with the left-handed Access Pro-L barrier gate opener from Magnetic AutoControl- ideal for industrial sites, residential complexes, and small parking areas. It features the EN 13849-compliant MGC PRO control unit with programmable I/O, selectable open/close speeds, and an auto-open function during power outages, all easily configured via an LCD screen. The 12-foot VarioBoom arm improves visibility and safety with a foam-lined edge, while the high-torque MHTM MicroDrive ensures smooth, reliable operation in harsh weather with its fully integrated motor, control, and gearing system.
Includes:
- MGC Pro Controller
- 12' VarioBoom Barrier Boom
- Integrated Dual Channel Loop Detector
- White Powder-Coated Aluminum Housing
Features:
- 4.0 Second Open and Close Speeds
- Adjustable opening and closing times
- Maximum power consumption of 25W
- 10 Million opening and closing cycles
- 2 Year Warranty
Available Options for Replacement Arms:
- Click here for 12 feet arm (grey)
- Click here for 12 feet arm (grey w/ LED strips)
- Click here for 12 feet arm (white)
- Click here for 12 feet arm (white / custom passage height)
- Click here for 12 feet arm (grey / custom passage height)
| SKU | ACCESS-PRO-L-LC01240 |
|---|---|
| Alternate Part Number | Access Pro-L-LC01240 |
| Manufacturer | Magnetic Automation Corp. |
| Model | Access Pro-L |
| Boom Length | 12 ft |
| Speed | 4.0 seconds |
| Color | White |
| Dimensions (W x D x H) | 12" x 14" x 36" |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Max Power Consumption | 25 W |
| Protection Class | IP 54 |
| Frequency | 50 / 60 Hz |
| Temperature Range | -22°F to +122°F |
| Weight (without boom) | 88 lbs |
