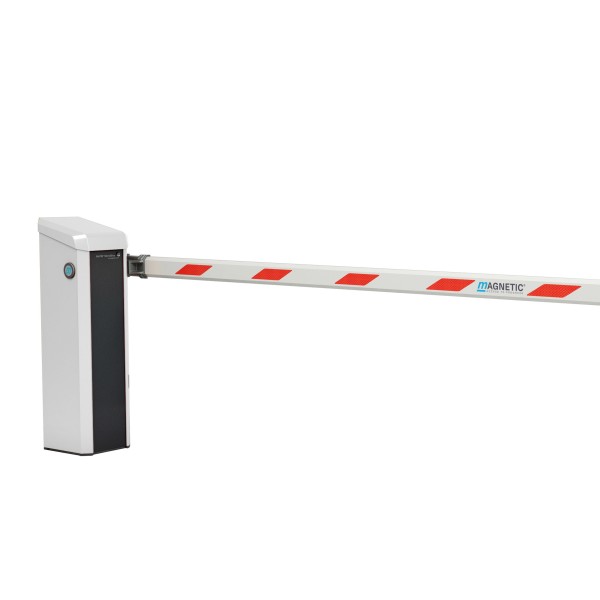

Are you looking for a reliable way to secure an extra wide road, and have the additional need for a boom skirt? The Access Pro-H-RC02040 barrier opener is specifically designed for applications that require a boom skirt. Boom skirts help prevent pedestrian intrusion and make your system more secure. Designed and manufactured by Magnetic AutoControl, the number one name in the barrier industry.
All Access Pro-H gate openers contain the MGC PRO control unit that is EN 13849 compliant and is easy to configure with an LCD screen. Worried about heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit. Includes a 20 ft straight boom.
- MGC Pro Controller
- 20' MicroBoom Barrier Boom*
- Integrated Dual Channel Loop Detector
- White Powder-Coated Aluminum Housing
- 4.0 Second Open and Close Speeds
- Built for boom skirts
- Selectable opening and closing times
- Maximum power consumption of 25W
- 10 Million opening and closing cycles
- 2 Year Warranty
Available Options for Replacement Arms:
*Please Note: Gates with booms over 15 ft must use a pendulum support or support post. Boom skirt sold separately. A pendulum support or support post is required when using a boom skirt.
|Control Unit||Integrated 2-channel loop detector|
|Manufacturer||Magnetic Automation Corp.|
|Boom Length||20 ft|
|Dimensions (W x D x H)||12" x 14" x 44"|
|Max Power Consumption||25 W|
|Wide Voltage Range||85 V - 264 V|
|Protection Class||IP 54|
|Frequency||50 / 60 Hz|
|Temperature Range||-22°F to +122°F|
|Weight (without boom)||97 lbs|
