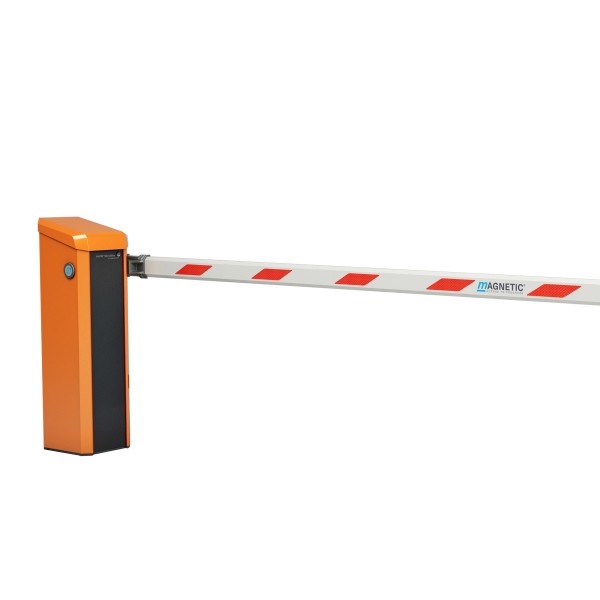

Magnetic Access Pro-H Barrier Gate Opener MicroDrive - 15ft Boom (Orange)
Details
Magnetic Access Pro-H Barrier Gate Opener MicroDrive - 15ft Boom (Orange)
Are you looking for a way to secure an access road, and have the additional need for a boom skirt? The Access Pro-H-RC01500 barrier opener is specifically designed for applications that require a boom skirt. Boom skirts help prevent pedestrian intrusion and make your road more secure. Designed and manufactured by Magnetic AutoControl, the top name in the barrier industry.
All Access Pro-H gate openers contain the MGC PRO control unit that is EN 13849 compliant and is easy to configure with an LCD screen. Worried about heavy wind or snow? The MHTM MicroDrive drive unit has a high torque that guarantees the best operation in the most severe weather conditions. The motor, motor control and gearing are all combined in one compact drive unit. Includes a 15 ft straight boom.
Includes:
- MGC Pro Controller
- 15' MicroBoom Barrier Boom
- Integrated Dual Channel Loop Detector
- Orange Powder-Coated Aluminum Housing
Features:
- 4.0 Second Open and Close Speeds
- Built for boom skirts
- Selectable opening and closing times
- Maximum power consumption of 25W
- 10 Million opening and closing cycles
- 2 Year Warranty
Available Options for Replacement Arms:
*Please Note: Boom skirt sold separately. A pendulum support or support post is required when using a boom skirt.
| SKU | ACCESS PRO-H-RC01500 |
|---|---|
| Alternate Part Number | Access Pro-H-LC01500 |
| Manufacturer | Magnetic Automation Corp. |
| Model | Access Pro-H |
| Boom Length | 15 ft |
| Speed | 4.0 seconds |
| Color | Orange |
| Dimensions (W x D x H) | 12" x 14" x 44" |
| Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
| Max Power Consumption | 25 W |
| Protection Class | IP 54 |
| Frequency | 50 / 60 Hz |
| Temperature Range | -22°F to +122°F |
| Weight (without boom) | 97 lbs |
