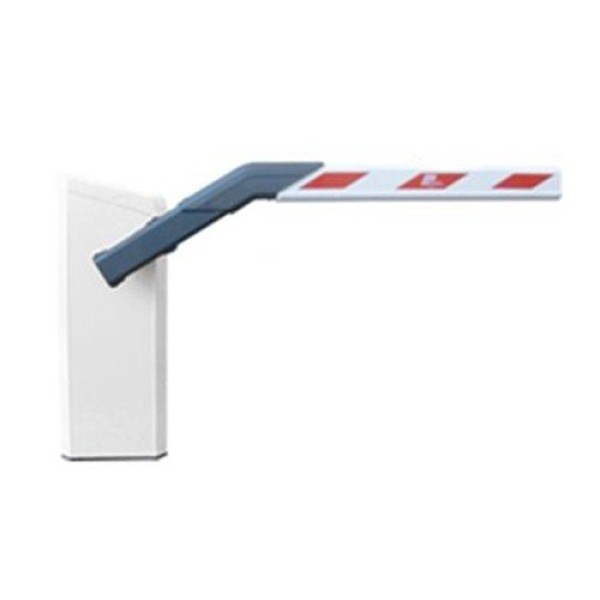

Magnetic Access Pro-L Barrier Gate Opener With MicroDrive with Breakaway Flange- 12ft Boom - Pro-RCB1240
Details
Magnetic Access Pro-L Barrier Gate Opener With MicroDrive with Breakaway Flange- 12ft Boom - Pro-RCB1240
Secure wide-lane vehicle access with the right-handed Magnetic Access Pro-L barrier gate opener, perfect for industrial entrances, gated communities, and commercial parking lots. This 24V unit features a UL-compliant 115V receptacle, an integrated dual-channel loop detector, and a breakaway flange that protects the housing from impact damage. The advanced MGC Pro controller offers programmable I/O, adjustable open/close speeds, and automatic opening during power failure. Paired with a 12-foot VarioBoom arm and the reliable MHTM MicroDrive motor, this gate system delivers high performance and durability in any weather condition.
Includes:
- MGC Pro Controller
- 12' VarioBoom Barrier Boom
- Integrated Dual Channel Loop Detector
- Breakaway Flange for Impact Protection
- White Powder-Coated Aluminum Housing
Features:
- 4.0 Second Open and Close Speeds
- Selectable opening and closing times via LCD interface
- Auto-open function during power outages
- 10 Million Maintenance-Free Cycles
- Energy-Efficient 25W Maximum Power Draw
- 2 Year Manufacturer Warranty
Available Options for Replacement Arms:
- Click here for 12 feet arm (grey)
- Click here for 12 feet arm (grey w/ LED strips)
- Click here for 12 feet arm (white)
- Click here for 12 feet arm (white / custom passage height)
- Click here for 12 feet arm (grey / custom passage height)
SKU | ACCESS-PRO-L-RCB1240 |
---|---|
Manufacturer | Magnetic Automation Corp. |
Boom Length | 12 ft |
Speed | 1.3 seconds |
Dimensions (W x D x H) | 12" x 14" x 36" |
Input Voltage | 110/115/120 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 1 Phase), 208 AC (60 Hz, 3 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase) |
Max Power Consumption | 95 W |
Protection Class | IP 54 |
Frequency | 50 / 60 Hz |
Temperature Range | -22°F to +122°F |
Weight (without boom) | 88 lbs |
